The Resistor Color Code Calculator functions as a perfect tool for anyone who needs it, from beginners to professional engineers.

A detailed guide coupled with a calculator tool will enable you to rapidly determine the resistance value, tolerance, and temperature coefficient of any carbon-composition resistor regardless of its 4-band, 5-band, or 6-band configuration.

What are Resistor Color Codes?

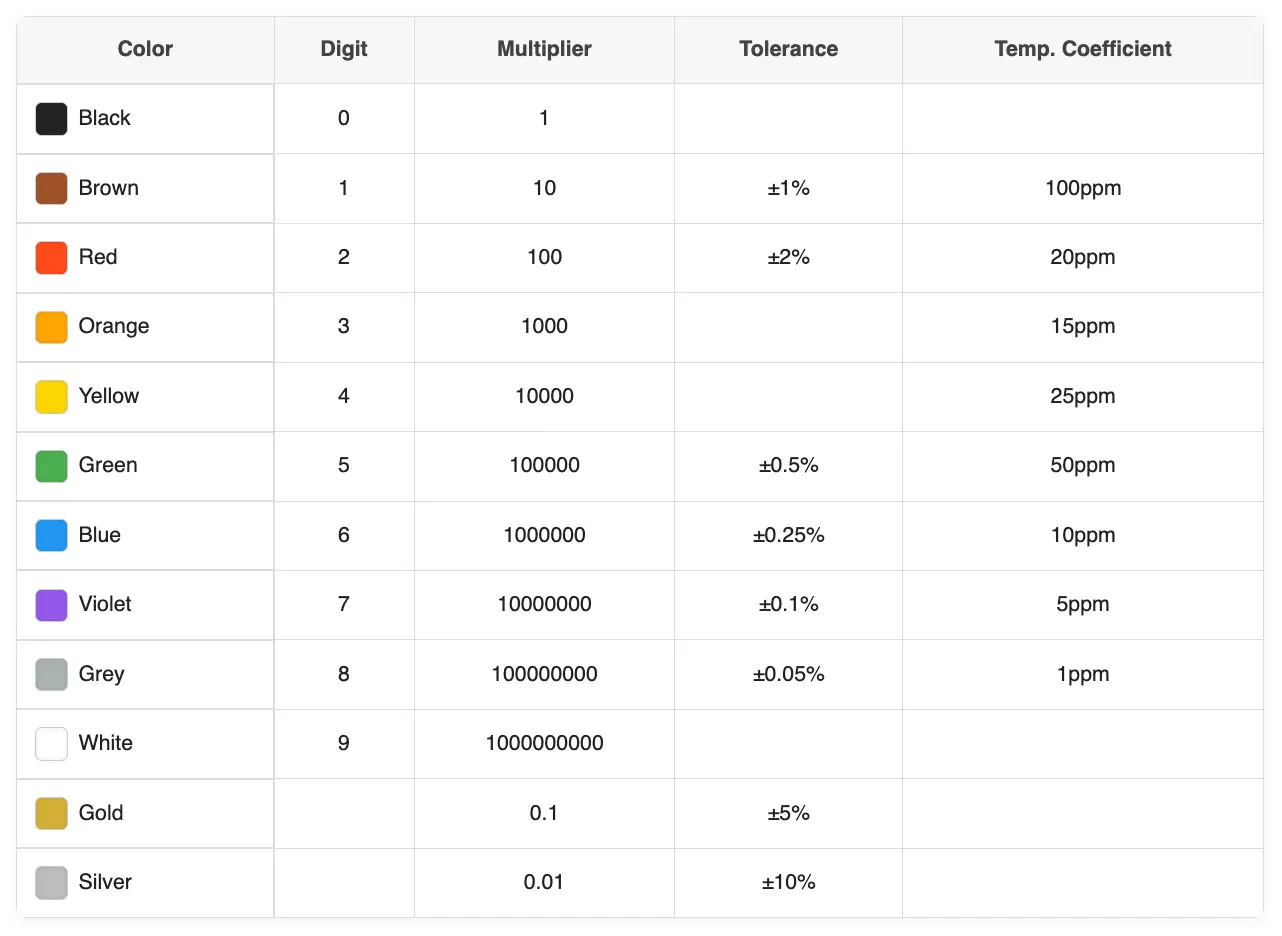

The electrical properties of resistors get marked with standardized colored bands through the resistor color code system.

The standardized band sequence provides immediate access to resistor characteristics, including ohm (Ω) resistance values, precision measurements, and thermal stability information.

Reading Resistor Bands: A Quick Overview

A standard resistor comes with either four, five, or six colored bands. The resistor features bands which function for particular purposes:

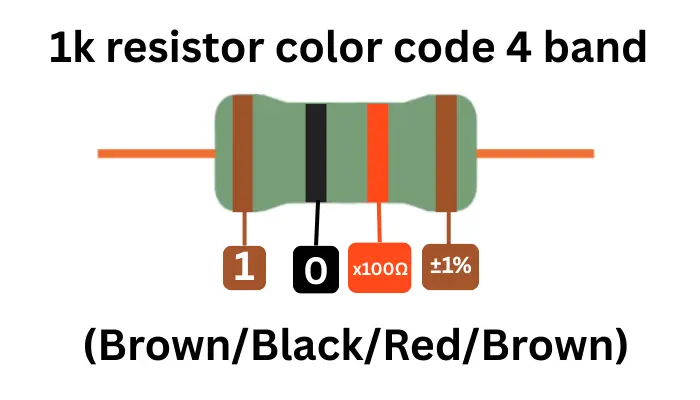

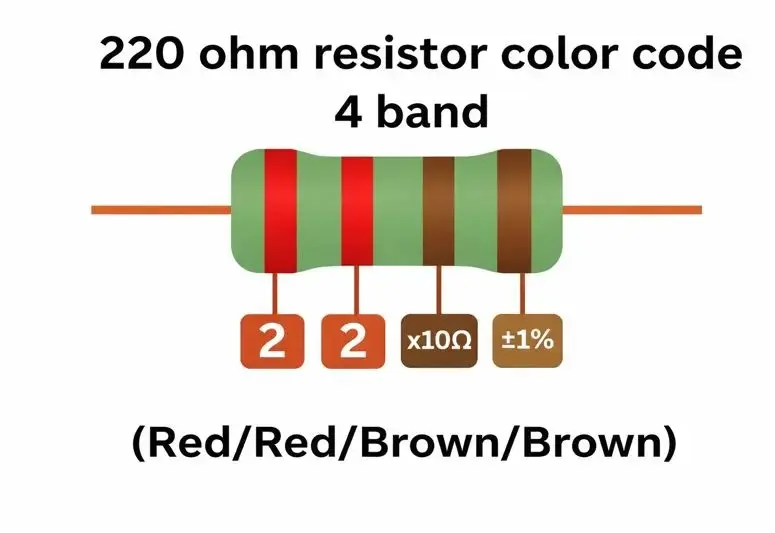

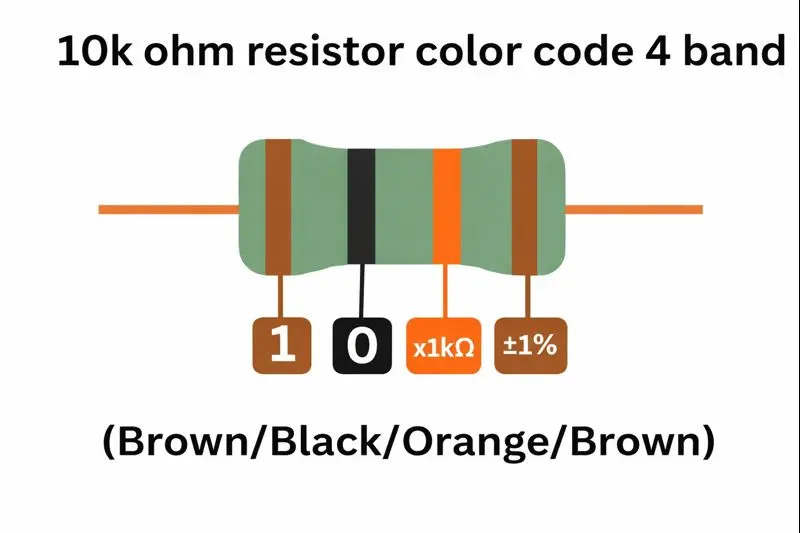

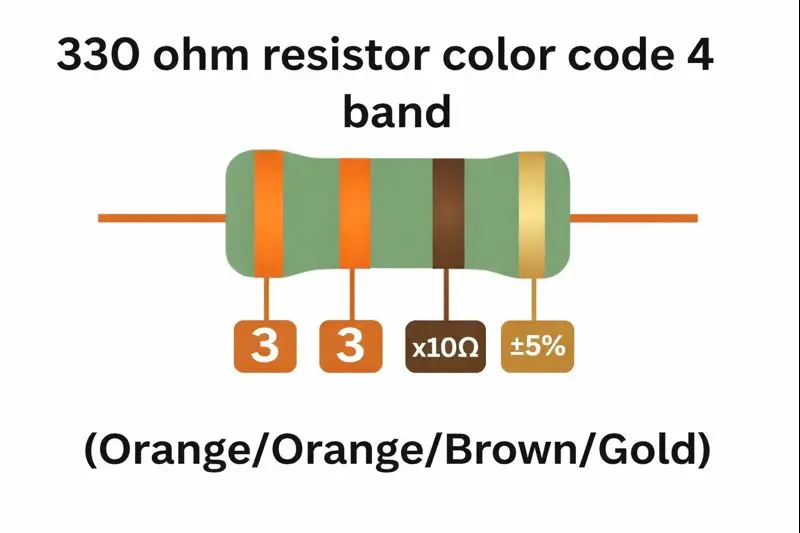

• First & Second Bands: Represent the first two significant digits of the resistance value.
• Third Band: The third band indicates a power of 10 which needs to multiply the significant digits.
• Fourth Band: Represents the tolerance (precision) of the resistor.

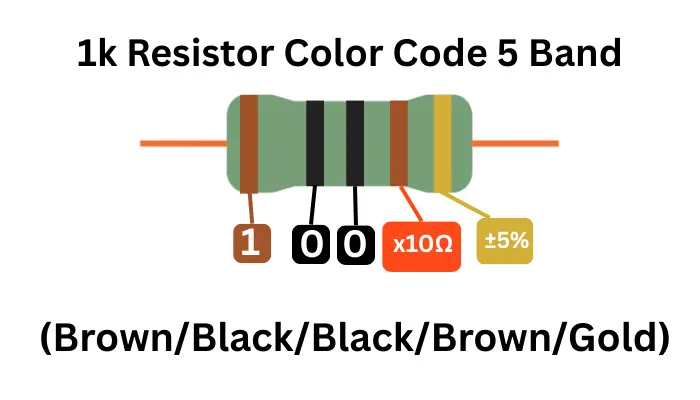

• Fifth Band: In 5-band and 6-band resistors, adds an extra significant digit to enhance precision in these components.
• Sixth Band: The sixth band on 6-band resistors specifically shows the temperature coefficient of resistance (TCR).

How to Use the Resistor Color Code Calculator

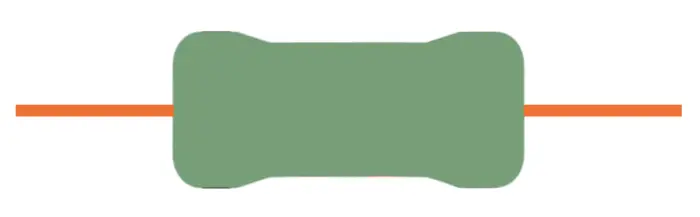

Our tool operates with an easy-to-use interface. A graphical representation of a resistor with multiple bands will appear in the interface.

Choose the color for each band in the calculator, and it will show the resistance value in ohms, tolerance as a percentage, and temperature coefficient in parts per million per degree Celsius. This makes it easy to compare the visual resistor bands to the digital tool, thus eliminating human errors and uncertainties.

How to Read the Bands Correctly

Reading direction can be confusing. Follow these professional tips to verify that you are reading the bands from left to right:

• Tolerance Band Position: The tolerance band appears at the resistor end as the final band, separated by a wide distance. You will never see the gold or silver color used for significant digits, so you should assume it is the last band when you see it.
• Wider Band: Sometimes, the tolerance band is printed with a wider width (1.5 to 2 times the width of the other bands).
• Manufacturer Documentation: Always refer to the manufacturer's datasheet for the most accurate information.
• Multimeter Verification: The most reliable way to confirm a resistor's value is by measuring it with a multimeter.

By following these guidelines and using our Resistor Color Code Calculator, you can confidently and accurately identify any resistor, ensuring your electronic circuits are built correctly and function as intended.
